FLANGE FACING

Flange Facing

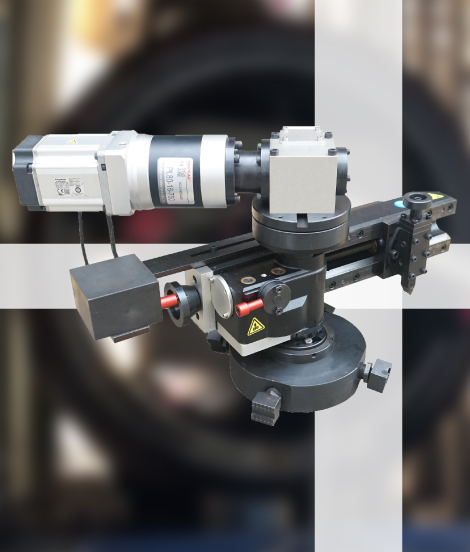

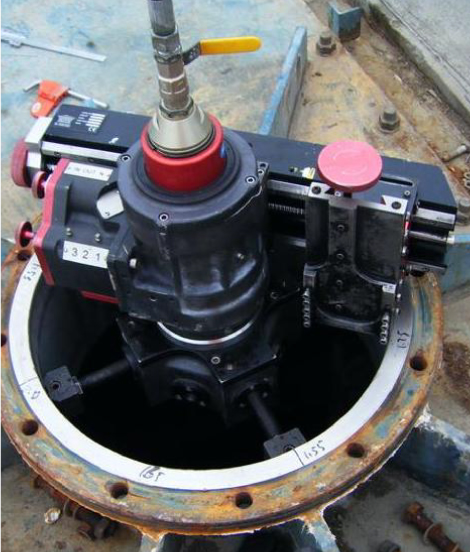

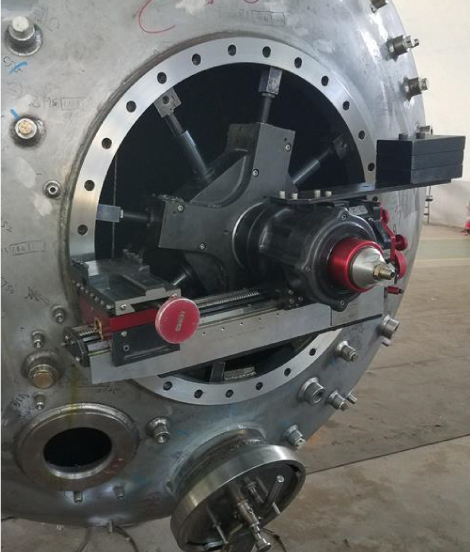

‘Oneline Facer’ is made up of in combination with Carbon steel, Stainless steel, Aluminum, Alloys which makes it ultra-portable to operate without paring down weight means no loss of performance and its capability. Basic, simple and cost-effective solutions for ID mount flange facing. It is a quick and easy way to reface damaged flat portion, grooves in pipe flanges on site. Manual ‘Oneline facer’s size and body is designed and built to allow quick and convenient processing of small flanges in awkward or dangerous locations.

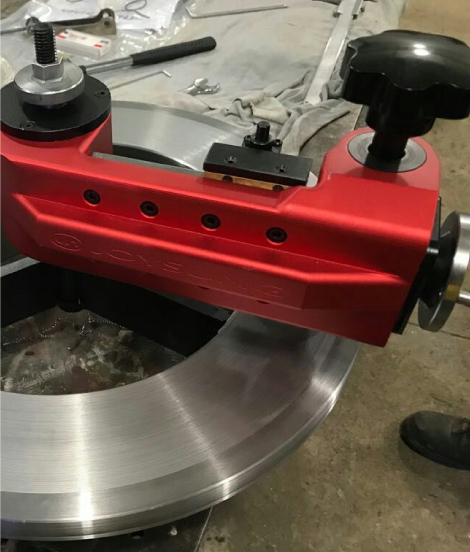

The ‘Oneline facer’ is a lightweight hand operated flange facing device to allow the repair of gasket seating area’s according to the ASME B 16.5 specification for surface finish. Even the hardest welded-on material is not a problem for the specially developed cutting bits.

The ‘Oneline facer’ is a lightweight hand operated flange facing device to allow the repair of gasket seating area’s according to the ASME B 16.5 specification for surface finish. Even the hardest welded-on material is not a problem for the specially developed cutting bits.

Specification

Model Clamping Range (mm) Working Range (mm) Tool Stroke (mm) Speed (RPM) Weight (Kg)
H/P/E12 2”-9” 2”-12” 100 0-42 80
H/P/E 24 8”-20” 8”-24” 100 0-42 160
H/P/E 36 20”-34” 20”-36” 100 0-33 310
H/P/E 40 24”-38” 24”-40” 100 0-33 419
H/P/E 60 24”-58” 24”-60” 100 0-22 980
M13 1”-12” 1”-13.78” 100 0-22 980

First alphabet denotes drive of machine H- Hydraulic, P-Pneumatic, E- Electrical and M- Manual

Features

  • The Oneline Facer comes complete ready to use in a very sturdy carry case Including
  • The Oneline Facer body with fitted stock finish feed spindle ( ASME norm )
  • Tool slide
  • Tool holder
  • 2 off cutting tip holders ( 1 pc straight and 1pc 90° angled )
  • 1 complete set of grippers from 24 mm ( 1” ) ID to 254 mm ( 10”) ID ( 8 sets )
  • Complete set of hand tools
  • 1 Feed spindle for smooth finish
  • Conversion chart for gripper set up
