GOOSE SERIES

Goose Serise

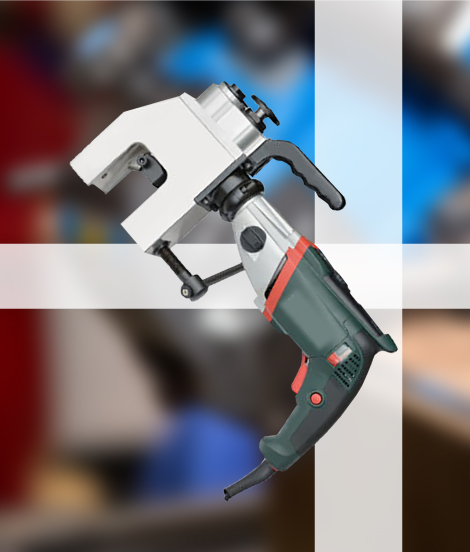

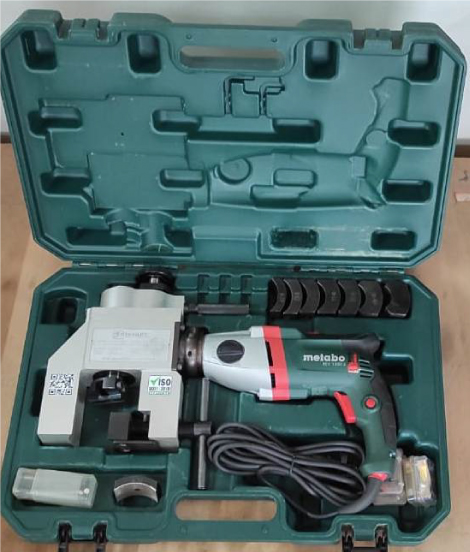

Auto feed pipe facing machine is designed for the end beveling for narrow working projects and small diameter pipe. It is OD mounted and it has secured clamping feature with automatic feeding which is easy to operate. It is widely used in water wall, fins, boiler economizer, super heater, repeater, power plants and other industries.

Beveling Geometry

Specification

Model Range OD (mm) Pipe thickness (mm) Rotating Speed (rpm) Tool stroke (mm) Body thickness (mm)
Goose 53 Φ14-53 ≤12 0-58 0-20 54
Goose 76 Φ25-76 ≤12 0-54 0-20 58

*Above parameters just for reference only, not acceptance criteria

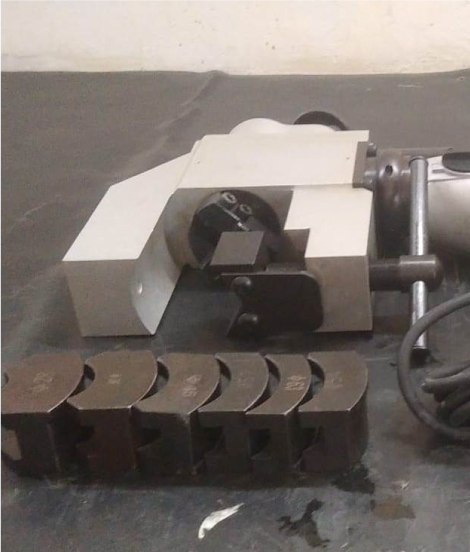

Clamping Block

Model 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Goose 53 Φ14 Φ16 Φ18 Φ20 Φ22 Φ25.4 Φ28 Φ32 Φ38 Φ42 Φ45 Φ48 Φ51 Φ53
Goose 76 Φ25.4 Φ28 Φ32 Φ38 Φ42 Φ45 Φ51 Φ54 Φ57 Φ60 Φ63 Φ68 Φ70 Φ73 Φ76

Features

  • Cold cutting, without affecting the material of pipe
  • OD mounted, self-centering, secured clamping and easy to operate
  • Aluminum body,which is lighter in weight
  • Working range is up to 14-76mm
  • Pneumatic and Electric options are available

Power Supply

POWER SUPPLIES

  • METABO Motor
  • Electric requirement:220-230V 1PH 50/60HZ
  • Power : 1.3KW
