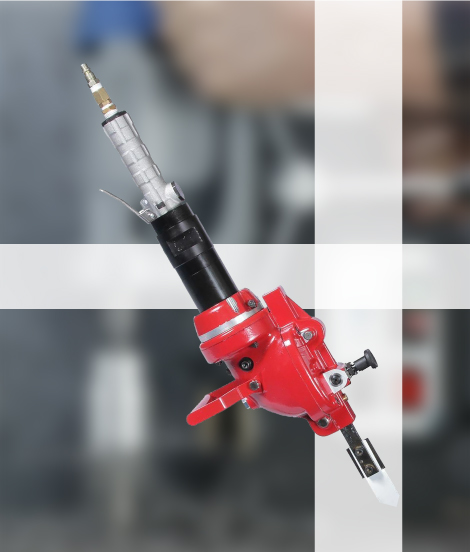

Pneumatic Reciprocating Saw

Pneumatic Reciprocating Saw

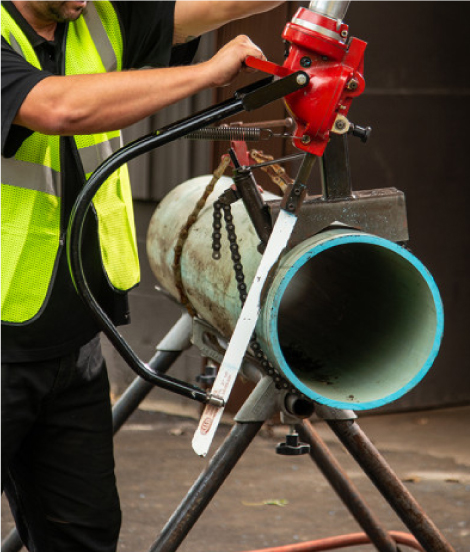

Pneumatic saw provides power and reciprocating motion to blades. Used with Power Hack Saw Blades (sold separately), this saw cuts plastic, steel, stainless steel, and C900/C905 PVC pipe. These model improvements include more powerful air motor, up to 20% faster cutting performance and adjustable exhaust flow air direction. It turns and works freely, along with starting easy and running smoothly. As a safety feature, a trigger lock prevents accidental “on” if the trigger is bumped or pressed unintentionally. It needs 6” clearance beyond the pipe to accommodate blade movement. Optional Blade Guides provide directional guidance for the saw.  Maximum capacity is blade and blade guide dependent. Saw It cuts up to 24” diameter pipe when used with the It Vise and a 12” chain extension. It cuts up to 20” (500 mm) diameter pipe when used with recommended blade guide.  Pneumatic saws are less likely to ignite materials than gas-powered saws and even some electrical-powered saws.

Specification

Dimensions 26 x 7 x 5 in
Speed 0 to 300 rpm
Air Pressure 90 psi
Horsepower: 2 hp
Stroke Length 2-13/32 in

Features

  • It cuts ABS, aluminum, Copper, CPVC, PE, PP, PVC C900 and C905, PVC heavy wall, PVC SCH 40 and 80, steel/stainless steel SCH 40 and 80, steel tubing, HDPE
  • More powerful air motor (old motor 15 hp new motor 2 hp)
  • Better cutting performance (up to 20% faster cut)
  • Adjustable airflow direction for exhaust
  • It provides pneumatic power and reciprocating motion to blades
  • It provides pneumatic power and reciprocating motion to blades
  • Trigger lock prevents accidental start if the trigger is bumped or pressed unintentionally
  • 24 in max capacity dependent on blade and chain extensions
  • Hack saw blades sold separately
  • 12-1/2 x 10 x 5 in vise
  • Operates at 300 strokes/minute
  • Immediate start up on throttle squeeze, Immediate shut down with throttle release
