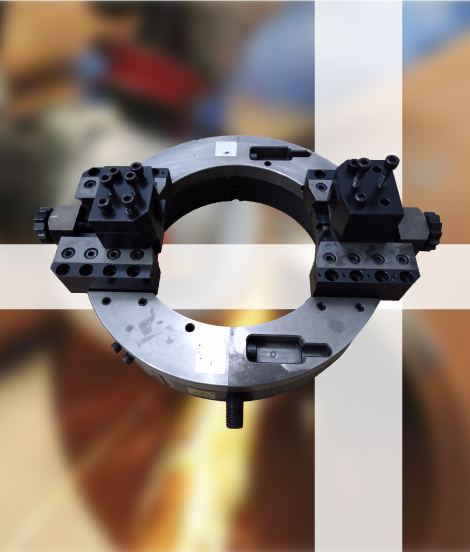

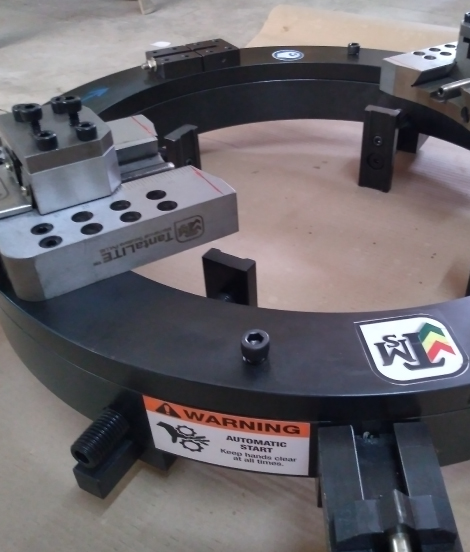

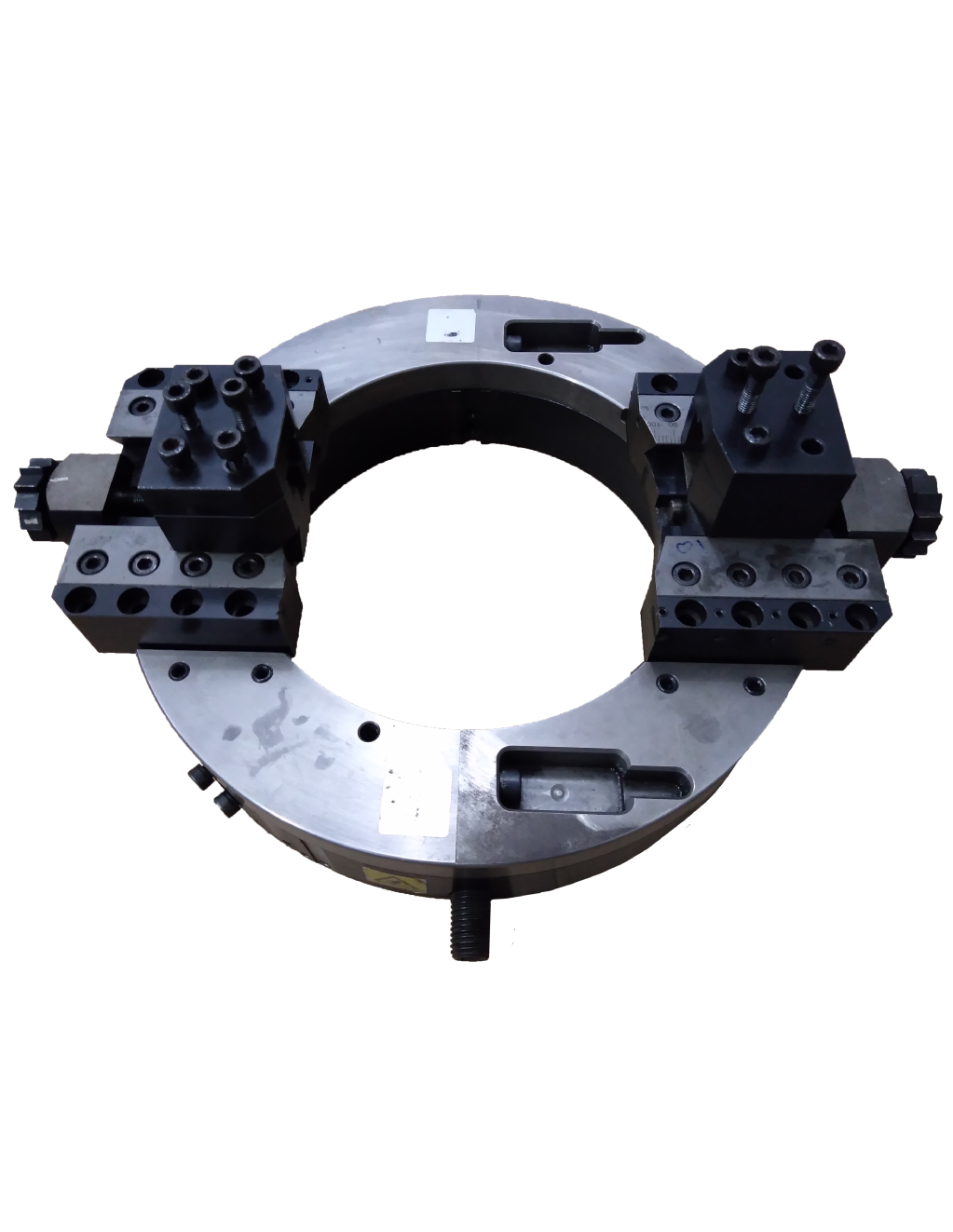

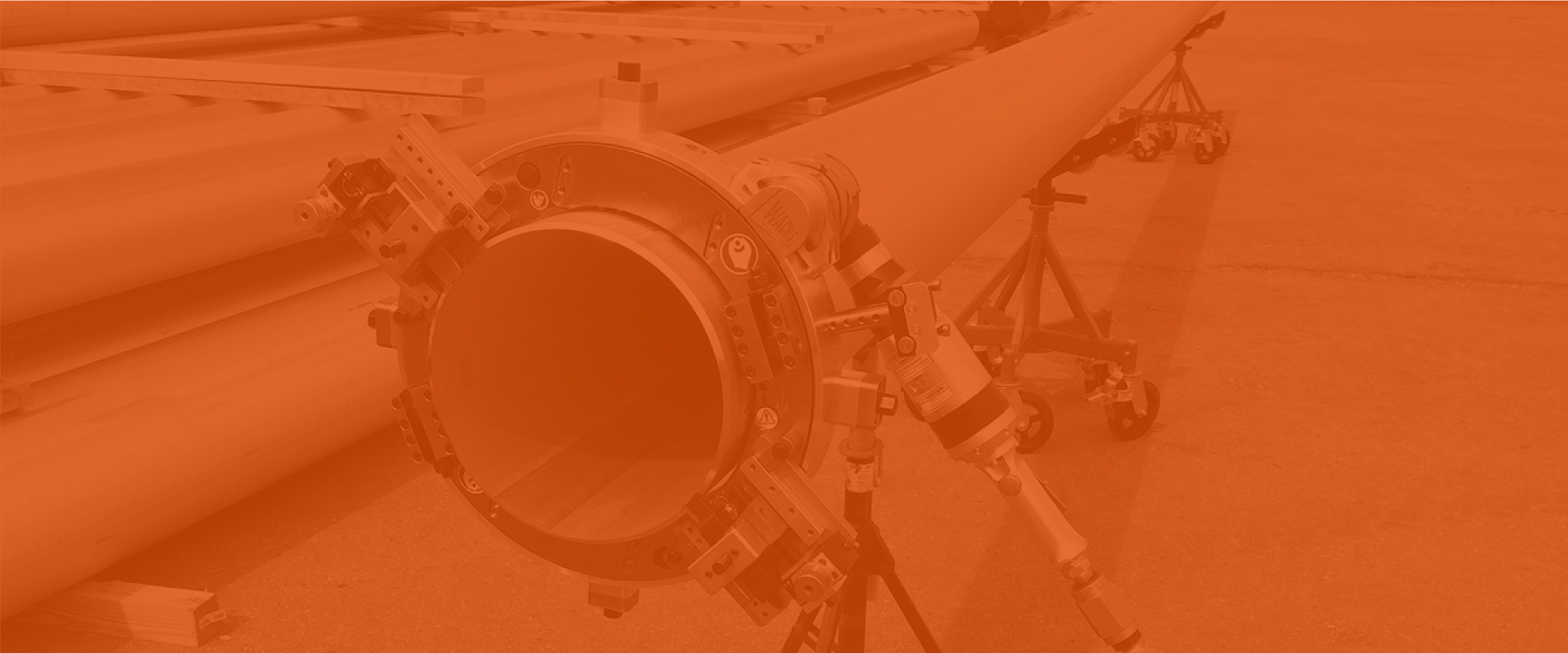

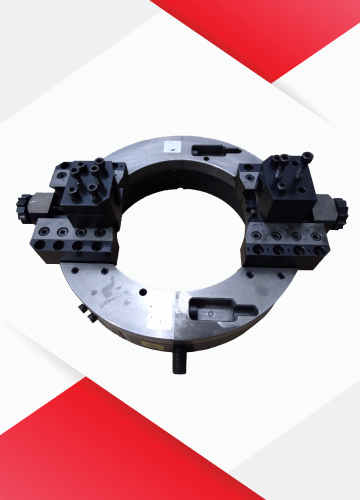

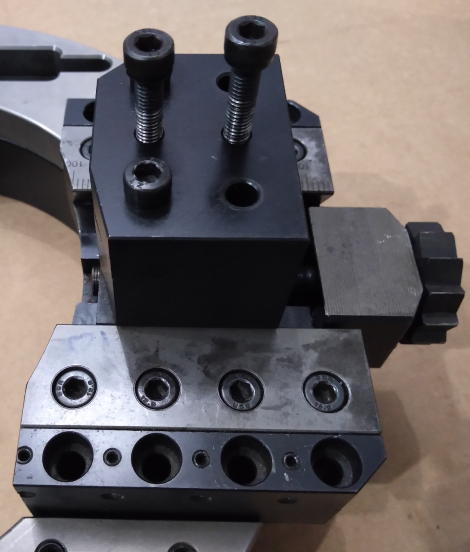

Swan split frame pipe cutting and beveling machines are designed to cut, bevel and face on the pipe. It is a portable pipe cutting and beveling machine tool which has adopted clamshell style with an ability to split in two pieces so that it would be easier to install it inline. It is comprehensively used in pipe work of oil & gas, petroleum, chemical, boiler, medicine machine, nuclear power and power plants.

Operational Capacity

  • Pipe cut off
  • Pipe end beveling
  • Pipe facing
  • Cutting and beveling
  • Compound beveling
  • Counter boring
  • Flange facing
  • Grooving

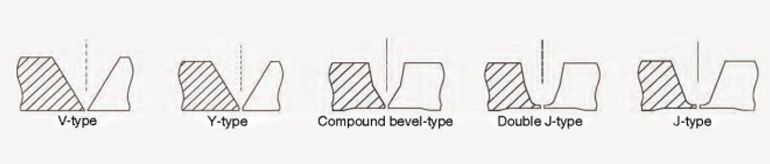

Beveling Geometries

Contextual Classes

Model Working range Working range Rotating speed (rpm)
OD(mm) OD (inch) Single operation Multi operation
SWAN 0106 Ф25~168 1"~6" ≤25 ≤50 24
SWAN 0308 Ф75~219 3"~8" ≤25 ≤50 23
SWAN 0410 Ф114~273 4"~10" ≤25 ≤75 23
SWAN 0612 Ф168~323 6"~12" ≤25 ≤75 23
SWAN 0814 Ф219~355 8"~14" ≤25 ≤110 23
SWAN 1016 Ф254~406 10"~16" ≤25 ≤110 22
SWAN 1218 Ф323~457 12"~18" ≤25 ≤110 20
SWAN 1420 Ф355~508 14"~20" ≤25 ≤110 20
SWAN 1622 Ф406~559 16"~22" ≤25 ≤110 14
SWAN 1824 Ф457~610 18"~24" ≤25 ≤110 14
SWAN 2430 Ф610~762 24"~30" ≤25 ≤110 13
SWAN 3036 Ф762~914 30"~36" ≤25 ≤110 11
SWAN 3642 Ф914~1066 36"~42" ≤25 ≤110 10
SWAN 3844 Ф980~1160 38"~44" ≤25 ≤110 9
SWAN 4048 Ф1040~1240 40"~48" ≤25 ≤110 9
SWAN 4551 Ф1150~1300 45"~51" ≤25 ≤110 8
SWAN 4856 Ф1219~1422 48"~56" ≤25 ≤110 8
SWAN 5260 Ф1320~1540 52"~60" ≤25 ≤110 5

Features

  • Standard Working range for pipe OD 1"- 56"
  • Non-standard model can be customized
  • OD mounted and clamping can be done by multipoint jaws.
  • Split frame technology which is easier to install on the pipe.
  • Cold cutting and beveling operations never reacted with the pipe's material.
  • Auto feed cutting and beveling operations helps to reduce time and also, cost effective.
  • Varity of beveling shape: "U","V","Y",J", double "V", compound bevels.
  • Stationary ring is made up of aluminum and still (Optional)
  • Electric, pneumatic, numerical controller and hydraulic drive options are available.
  • Several different drive options are available to best position the motor for a specific machining application.
  • It can be equipped a wide range of accessories to increase performance and expand capabilities.

PRIME MOVERS:

Electric options

  • Electric requirement:220-240V 1PH 50/60HZ
  • Carbon brush Motor:1.43KW,1.7KW,2.4KW
  • Brushless Motor: 1.5KW,2.0KW,3.0KW
  • Double motorized power for bigger SWAN model or heavy duty.

Pneumatic option:

  • Air requirement:1500-2000L/min @0.63-0.8Mpa
  • Power:2HP,3HP,4HP
  • Double motorized power for bigger SWAN model or heavy duty

NC Controlled:

  • Ideal for heavy wall thickness & large size pipe
  • Electric requirement: 230V 1PH 50/60Hz;
  • 380V 3PH 50/60Hz
  • Power:2.0KW or 3.0KW
  • Double motorized power for bigger SWAN model or heavy duty

Hydraulic option:

  • deal for heavy wall thickness & large size pipe
  • Hydraulic requirement:28-50L/min @13Mpa
  • Electric requirement: 380V 3PH 50/60Hz
  • Rated Pressure:13MPa
  • Max.Torque:380NM

CUTTING AND BEVELING TOOLS:

  • Form tool and Insert type
  • HSS, HSS Cobalt, Carbide material can be used according to the pipe’s material and it can be made as per the geometry/ degree required.
