Torque Wrench

Torque Wrench

Highly Tensile Strength Hydraulic Bolting Tools

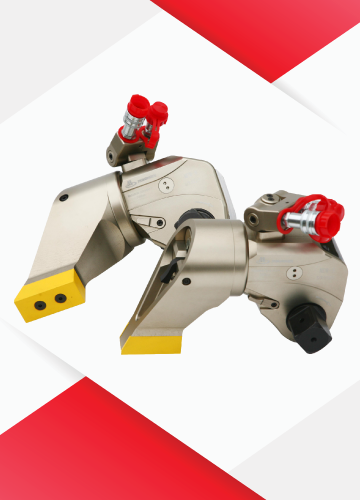

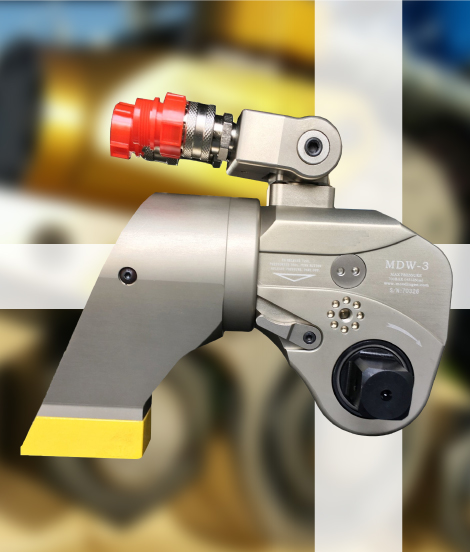

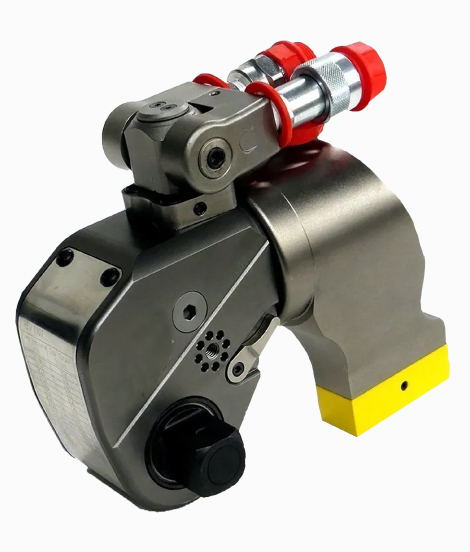

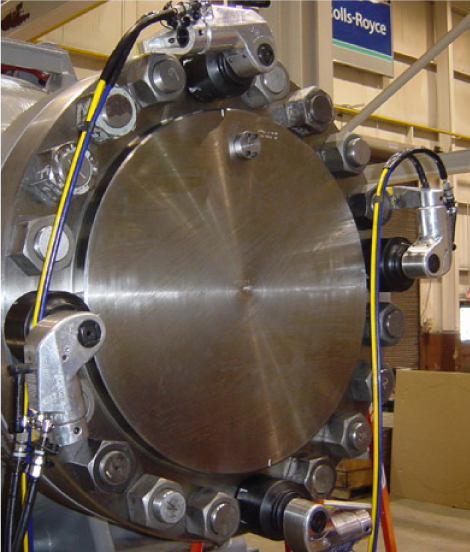

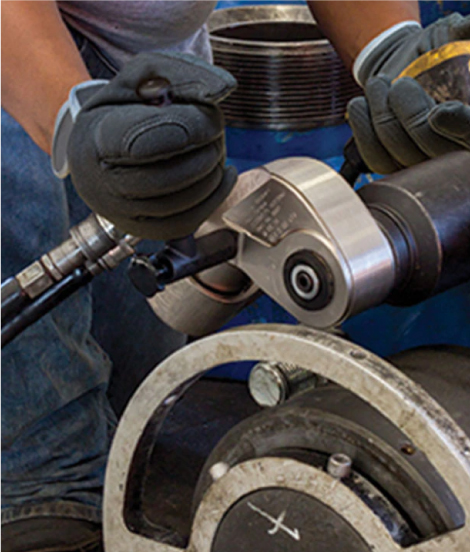

A hydraulic torque wrench is a power tool designed to exert torque on a fastener to achieve proper tightening or loosening of a connection through the use of hydraulics. A torque wrench is applied to the nut either directly or in conjunction with an impact socket.

Specification

Model Torque Range (Nm) Driving Square (inch) H1 (mm) H2 (mm) H3 (mm) H4 (mm) L1 (mm) L2 (mm) R1 (mm) Weight (mm)
High Torque 1 183-1837 3/4 50 72 90 131 125 189 26 2
High Torque 3 451-4512 1 68 95 123 176 160 242 35 4.4
High Torque 5 752-7528 1-1/2 80 122 149 198 204 264 42 7.5
High Torque 8 1078-10780 1-1/2 90 130 167 216 222 293 47 9
High Torque 10 1551-15516 1-1/2 100 142 186 231 243 369 53 13
High Torque 20 2666-26664 2-1/2 120 183 220 269 310 386 64 23
High Torque 25 3472-34725 2-1/2 137 200 247 296 330 406 66 31
High Torque 35 4866-48666 2-1/2 147 218 276 331 353 539 75 43

Socket Model Wrench Model Square Size Bolt Diameter(mm) Width Across Flats(mm) L1(mm) L2(mm) D1(mm) D2(mm)
HT 75-24 High Torque 1 3/4'" M16 24 54 32 40 40
HT 75-27 High Torque 1 3/4'" M18 27 54 32 42 42
HT 75-30 High Torque 1 3/4'" M20 30 54 33 46 44
HT 75-34 High Torque 1 3/4'" M22 34 54 32 48 44
HT 75-36 High Torque 1 3/4'" M24 36 57 32 53 44
HT 75-41 High Torque 1 3/4'" M27 41 58 33 60 44
HT 75-46 High Torque 1 3/4'" M30 46 63 38 66 44
HT 75-50 High Torque 1 3/4'" M33 50 65 40 71 44
HT 75-55 High Torque 1 3/4'" M36 55 70 45 77 54
Socket Model Wrench Model Square Size Bolt Diameter(mm) Width Across Flats(mm) L1(mm) L2(mm) D1(mm) D2(mm)
HT 100-30 High Torque 3 1" M20 30 59 32 54 54
HT 100-34 High Torque 3 1" M22 34 59 32 58 58
HT 100-36 High Torque 3 1" M24 36 62 32 59 59
HT 100-41 High Torque 3 1" M27 41 65 38 67 54
HT 100-46 High Torque 3 1" M30 46 65 38 74 54
HT 100-50 High Torque 3 1" M33 50 70 43 79 60
HT 100-55 High Torque 3 1" M36 55 80 52 84 60
HT 100-60 High Torque 3 1" M39 60 85 57 89 60
HT 100-65 High Torque 3 1" M42 65 85 58 98 70
HT 100-70 High Torque 3 1" M45 70 90 62 104 70
HT 100-75 High Torque 3 1" M48 75 95 65 108 70
Socket Model Wrench Model Square Size Bolt Diameter(mm) Width Across Flats(mm) L1(mm) L2(mm) D1(mm) D2(mm)
HT 150-36 High Torque 5 / High - M24 36 85 44 74 74
HT 150-41 High Torque 5 / High - M27 41 85 44 74 74
HT 150-46 Torque 8 /High Torque 10 1-1/211 M30 46 85 44 74 74
HT 150-50 Torque 8 /High Torque 10 1-1/211 M33 50 90 45 79 79
HT 150-55 Torque 8 /High Torque 10 1-1/211 M36 55 90 45 84 84
HT 150-60 Torque 8 /High Torque 10 1-1/211 M39 60 100 45 94 94
HT 150-65 Torque 8 /High Torque 10 1-1/211 M42 65 100 45 98 80
HT 150-70 Torque 8 /High Torque 10 1-1/211 M45 70 105 50 104 80
HT 150-75 Torque 8 /High Torque 10 1-1/211 M48 75 110 50 118 85
HT 150-80 Torque 8 /High Torque 10 1-1/211 M52 80 115 55 118 90
HT 150-85 Torque 8 /High Torque 10 1-1/211 M56 85 125 60 128 90
HT 150-90 Torque 8 /High Torque 10 1-1/211 M60 90 125 60 139 90
HT 150-95 Torque 8 /High Torque 10 1-1/211 M64 95 130 65 139 90
HT 150-100 Torque 8 /High Torque 10 1-1/211 M68 100 135 70 144 90
HT 150-105 Torque 8 /High Torque 10 1-1/211 M72 105 135 70 149 90
HT 150-110 Torque 8 /High Torque 10 1-1/211 M76 110 135 70 158 90
HT 150-115 Torque 8 /High Torque 10 1-1/211 M80 115 135 70 159 90
HT 150-120 Torque 8 /High Torque 10 1-1/211 MSS 120 135 70 168 95
HT 150-130 Torque 8 /High Torque 10 1-1/211 M90 130 155 93 189 95
Socket Model Wrench Model Square Size Bolt Diameter(mm) Width Across Flats(mm) L1(mm) L2(mm) D1(mm) D2(mm)
HT 250-55 High Torque 20 / High Torque 25 /High Torque 35 2-1/2” M36 55 100 57 86 114
HT 250-60 High Torque 20 / High Torque 25 / High Torque 35 2-1/2” M39 60 100 52 119 119
HT 250-65 High Torque 20 / High Torque 25 / High Torque 35 2-1/2” M42 65 100 52 119 119
HT 250-70 High Torque 20 / High Torque 25 / High Torque 35 2-1/2” M45 70 120 67 128 128
HT 250-75 High Torque 20 / High Torque 25 / High Torque 35 2-1/2” M48 75 120 67 128 128
HT 250-80 High Torque 20 / High Torque 25 / High Torque 35 2-1/2” M52 80 130 71 128 128
HT 250-85 High Torque 20 / High Torque 25 / High Torque 35 2-1/2” M56 85 130 71 129 129
HT 250-90 High Torque 20 / High Torque 25 / High Torque 35 2-1/2” M60 90 140 73 139 139
HT 250-95 High Torque 20 / High Torque 25 / High Torque 35 2-1/2” M64 95 140 73 139 139
HT 250-100 High Torque 20 / High Torque 25 / High Torque 35 2-1/2” M68 100 140 81 148 130
HT 250-105 High Torque 20 / High Torque 25 / High Torque 35 2-1/2” M72 105 150 89 149 130
HT 250-110 High Torque 20 / High Torque 25 / High Torque 35 2-1/2” M76 110 150 90 158 130
HT 250-115 High Torque 20 / High Torque 25 / High Torque 35 2-1/2” M80 115 150 98 168 130
HT 250-120 High Torque 20 / High Torque 25 / High Torque 35 2-1/2” M85 120 150 98 178 130
HT 250-130 High Torque 20 / High Torque 25 / High Torque 35 2-1/2” M90 130 170 98 188 130
HT 250-135 High Torque 20 / High Torque 25 / High Torque 35 2-1/2” M95 135 170 114 198 130
HT 250-145 High Torque 20 / High Torque 25 / High Torque 35 2-1/2” M100 145 170 122 210 152
HT 250-150 High Torque 20 / High Torque 25 / High Torque 35 2-1/2” M105 150 190 140 216 152
HT 250-155 High Torque 20 / High Torque 25 / High Torque 35 2-1/2” M110 155 190 140 229 152
HT 250-165 High Torque 20 / High Torque 25 / High Torque 35 2-1/2” M115 165 190 140 241 152

Features

  • Al-Ti alloy integrated machine has high strength, high tenacity with light weight.
  • The 360º×180º rotating oil connection has no limitation in used space and is convenient to be operated.
  • The actuating shaft is released by torque and can fast switch between screwing up and dismantling.
  • The hydraulic piston and power head have a small shape, compact structure and small operation radius.
  • The nut rotation angle in single operation is large and the hydraulic piston has a quick return stroke. The work efficiency is high.
  • The reactive force is on one straight line, which can decrease the inner torque abrasion.
  • The constant torque output provides the high precision for wrench in the whole working process.
  • The maintenance is simple and does not need the special tools.
  • The precise ratchet wheel is used in the inside of the wrench, with the precision up to ±3%.
